Can domestic products achieve 0.005mm travel parallelism comparable to the Japanese SMC brand MXJ se

exist3CIn precision assembly scenarios such as electronics and semiconductor sorting, and medical equipment, miniature sliding cylinders are almost ubiquitous."Essential small items"—— Small size, stable precision, and long lifespan are requirements that have been met for a long time.JapanSMCbrandMXJThis series is almost the industry's default choice. However, the pain points of long lead times, high costs, and difficulty in small-batch procurement have been troubling equipment manufacturers.

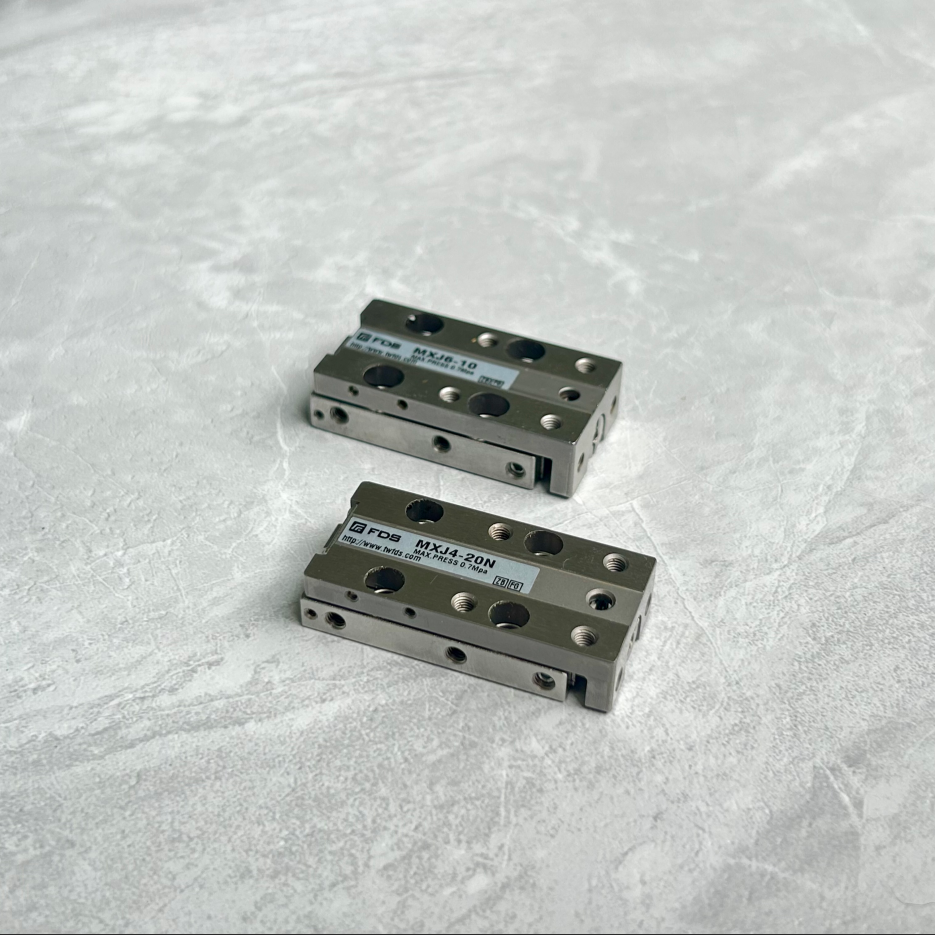

We useoneThis full-parameter benchmark has been refined over many years.MXJOur series of miniature slide cylinders are meticulously aligned with original factory standards, from core sealing to structural precision, with the goal of achieving the highest level of precision."It's ready to use right out of the box, and its performance isn't compromised." domestic1:1Flat replacement.cylinder diameter from4mm、6mm、8mmModel fromMXJ4-05、MXJ4-10、MXJ6-05、MXJ6-10、MXJ6-15、MXJ8-05、MXJ8-10、MXJ8-15、MXJ8-20Full coverage.

The confidence in our core quality stems first and foremost from the selection of our seals. We directly use Japanese pneumatic-specific sealing rings.—— This is alsoJapanSMC The same supply chain for miniature cylinders.

In terms of accuracy, we putMXJseriesAll performance parameters are broken down and implemented:

· Walking parallelism control at0.005mmwithin

· Parallelism of the slide end faces≤0.03mmverticality≤0.01mm

· The light preload guide rail design achieves theoretically ideal radial clearance and rotational accuracy. 0

· Cylinder Bore Coverageφ4.5/φ6/φ8Standard itinerary5~20mm Full series compatible

The details are also aligned with the original factory specifications.，Even the mounting holes and external dimensions are made to... 1:1 Interchangeable; existing equipment can be directly replaced without modifying the drawings.

Many people ask what the core of domestic substitution is? Our answer is: it's not. "As long as it works.", but"I forgot it was made in China."Once installed, no parameter adjustments, structural modifications, or lowering of expectations are needed. Lifespan and feel are on par with the original factory parts, while delivery time is shortened to [timeframe missing].1 Costs decreased during the week40% That's all.

at presentMXJThe entire series has been shipped in bulk, supporting both standard products in stock and custom specifications. If you are developing micro-precision equipment or want to optimize existing cylinder procurement costs, feel free to request samples for testing.—— Accuracy, starting pressure, leakage—measure them arbitrarily.
