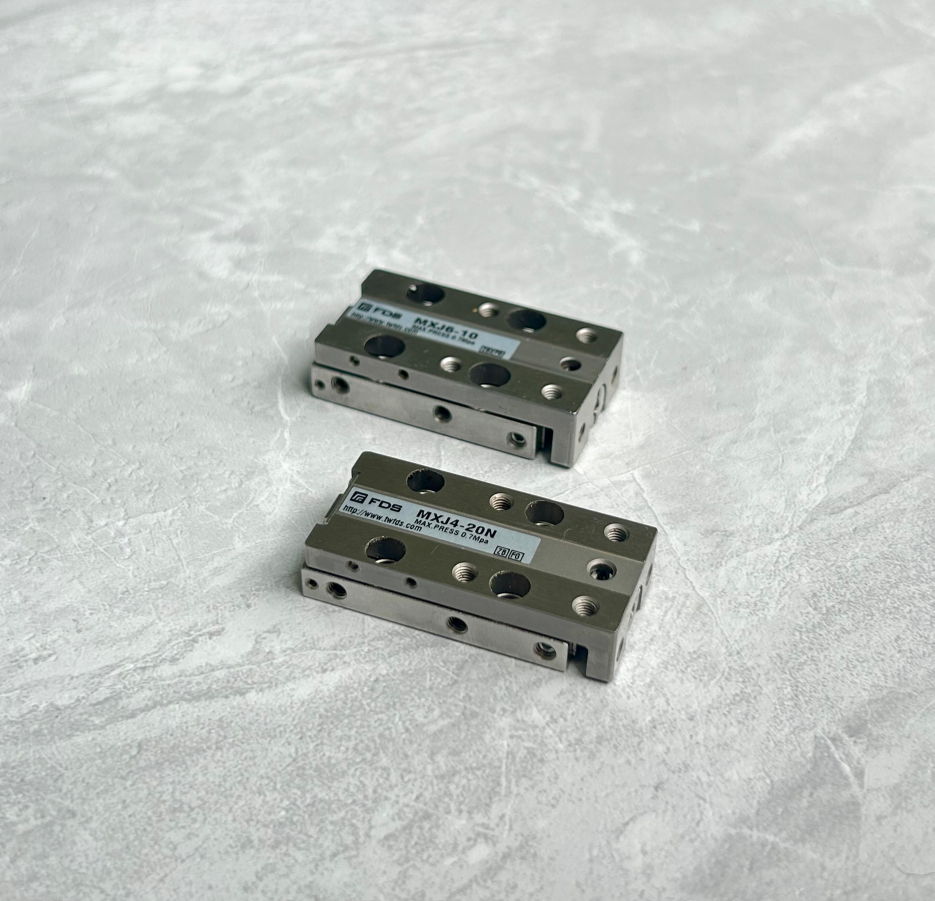

FDS micro slide cylinder —— complete replacement solution for MXJ series, precision without compromi

In precision assembly scenarios such as 3C electronics, semiconductor sorting, and medical equipment, micro slide cylinder units are almost a "must-have small component"—they need to be compact in size, stable in precision, and long in service life. For a long time, Japan's SMC brand MXJ series has been the industry's default choice, but the pain points of long lead times, high costs, and difficulty in small-batch procurement have always troubled equipment manufacturers.

After a year of technical refinement, FDS pneumatic components has officially launched a micro slide cylinder unit with full parameters benchmarked against the SMC MXJ series, delivering a "drop-in replacement that performs without compromise."

Full model coverage, no gaps in benchmarking

The FDS MXJ replacement series covers bore sizes Φ4, Φ6, and Φ8, with models ranging from MXJ4-05, MXJ4-10, MXJ6-05, MXJ6-10, MXJ6-15, MXJ8-05, MXJ8-10, MXJ8-15 to MXJ8-20. The full series is completely benchmarked, with standard strokes from 5 to 20mm fully compatible.

Core quality, aligned at the source

The seals directly use Japan's specialized pneumatic sealing rings, sourced from the same supply chain as SMC micro cylinders, ensuring that core sealing performance is not compromised.

Precision parameters, implemented item by item

Indicator                                                                 FDS replacement model parameters

Parallelism of travel                                                      ≤0.005mm

Parallelism of slide table end face                                         ≤0.03mm

Perpendicularity of slide table end face                                   ≤0.01mm

Guide rail design                                                          Light preload guide rail, with theoretical radial clearance and rotational accuracy both at 0

1:1 interchangeability, no drawing changes needed

Mounting hole positions and external dimensions are 1:1 interchangeable with the SMC MXJ series, allowing direct replacement and installation on existing equipment without modifying design drawings.

The core logic of the replacement

It's not about "being usable," but about "forgetting the brand once installed." No parameter adjustments, no structural changes, no lowered expectations—service life and feel are on par with MXJ, while also:

Lead time shortened to within 1 week (MXJ regular lead time is 4–8 weeks)

Procurement cost reduced by more than 40%

Support for standard product off-the-shelf availability and custom specifications

Currently, the full FDS MXJ series has shipped in volume. If you are developing micro precision equipment or looking to optimize the procurement costs of existing cylinders, feel free to contact us for samples and testing—precision, starting pressure, and leakage rate, test them all; let the data speak.
