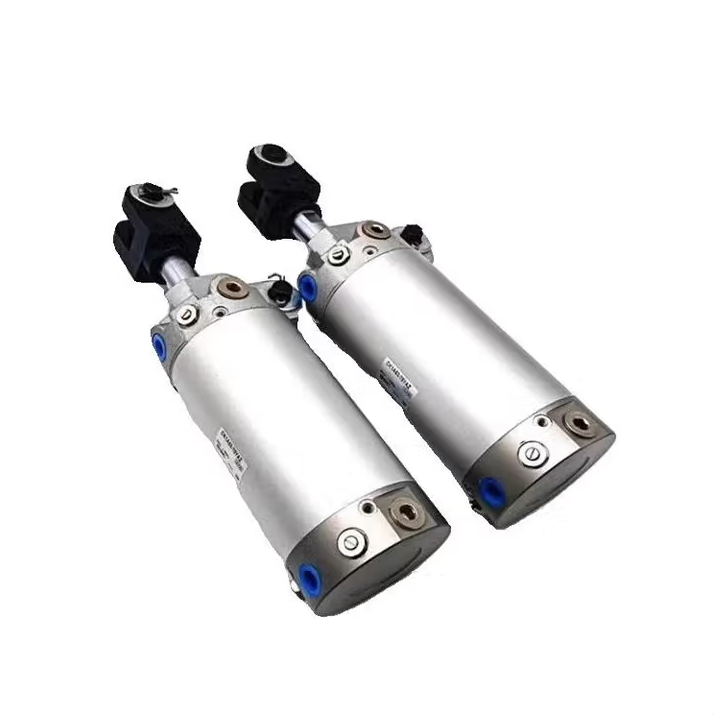

Fudashi/FDS Clamping Cylinder CK Series: A Cost - effective Alternative to SMC Pneumatic Cylinders
Core advantages
The core advantages of the FDS CK series clamping cylinders are reflected in the following aspects:
•
Compact design and space saving: The product adopts a compact design, with the overall length of the cylinder body shortened. It is particularly suitable for application scenarios with limited space. Its speed control valve does not protrude from the cylinder body surface, further ensuring the compactness of the overall design and facilitating integrated installation.
•
Convenient speed adjustment and control: Thanks to the screw - adjustment structure, speed adjustment becomes easier. Users can quickly adjust the clamping and releasing speeds according to the actual working conditions to optimize the work rhythm.
•
Strong magnetic switch compatibility: The product has a built - in standard magnet and can be installed with magnetic switches resistant to strong magnetic fields (such as compatible with D - P3DW type, D - P4DW type, etc.). This enhances the accuracy and reliability of position detection and can be installed from multiple directions, providing flexible detection solutions.
•
Reliable clamping force and high performance: The product can provide a powerful theoretical thrust (for example, when the cylinder diameter is 50mm and the pressure is 0.5MPa, the theoretical thrust OUT can reach 980N). The working pressure range is usually from 0.05 MPa to 1.0 MPa, and the pressure resistance is guaranteed to reach 1.5 MPa, ensuring reliability and durability in high - pressure environments and meeting various high - requirement clamping applications.
•
Good compatibility: The FDS CK series strives to be highly compatible with SMC original products (such as SMC CK1, CKG1 series) in terms of installation dimensions, interfaces, and functions. This makes it convenient for you to directly replace them when designing new equipment or maintaining existing equipment without modifying the existing design.
