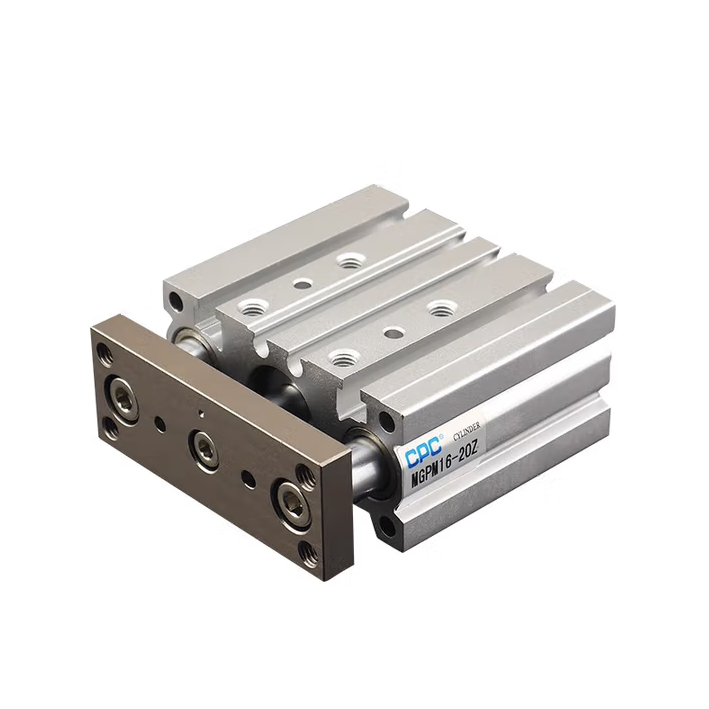

Thin Guided Cylinder MGQ, Replacement for SMC Pneumatics

Core advantages

The core advantages of the FDS MGQ series thin rod-guided cylinders are reflected in the following aspects:

•
High rigidity & excellent anti-moment ability: The product adopts an internal rod design, which significantly enhances its ability to withstand lateral loads (referring to the SMC MGQ series, the lateral load resistance is more than twice that of the original stop cylinder).

This means that in many working conditions, the load can be directly installed on the cylinder without additional guiding mechanisms or accessories, which not only simplifies the structure but also improves the overall rigidity.

•
High precision and non-rotation characteristics: Thanks to the internal rod design, high rod non-rotation accuracy is achieved, ensuring the linearity of motion and repeat positioning accuracy, which is very suitable for applications requiring precise guidance.

•
Compact structure and space-saving: The product is a rod-guided cylinder designed for extremely small installation spaces. The MGQ has the smallest installation space, which can significantly save the installation space of the equipment and is especially suitable for use in automated equipment with limited space layout.

•
Convenient and flexible installation: Multiple installation methods are provided, such as fixing with screws from the bottom or side of the cylinder body. The installation is very convenient, providing users with greater design flexibility.

•
Good compatibility: The FDS MGQ series strives to maintain a high degree of compatibility with the original SMC products (such as the SMC MGQ series) in terms of installation dimensions, interfaces, and functions, making it convenient for you to directly replace without modifying the existing design.
