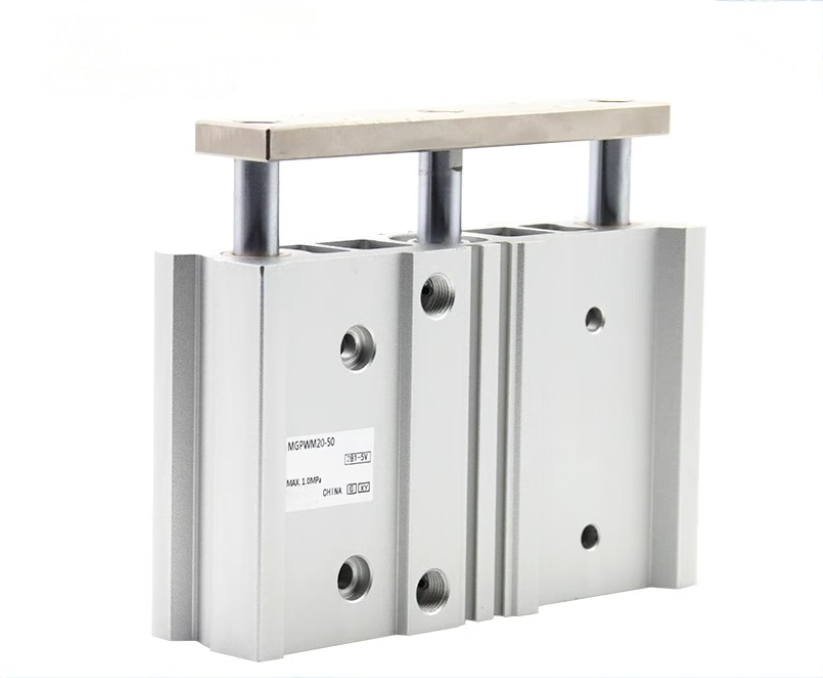

Fudashi/fds Thin Rod - Guided Cylinder, Wide - Type MGPW, A Replacement for SMC Pneumatics

Core advantages

The core advantages of the FDS MGPW series wide thin - rod guided cylinders are reflected in the following aspects:

•

Excellent anti - moment and high rigidity: The product uses a guide rail spacing twice that of the standard type, significantly improving the allowable rotation moment of the end - plate and the non - rotation accuracy.
This means it can withstand larger eccentric loads and complex loading conditions, providing extremely stable and precise linear motion guidance for the load. Its rigidity far exceeds that of ordinary thin - rod guided cylinders.

•

High precision and stable guidance: Thanks to the widened rod design and the precise bearing structure, extremely high rod non - rotation accuracy is achieved.
It ensures that even under heavy loads or high - speed movements, the linearity of motion and excellent repeat positioning accuracy can be maintained.

•

Powerful load - bearing capacity: The widened rod design not only improves the anti - moment ability but also enables it to directly install and drive heavier loads.
In many cases, additional external guiding mechanisms can be omitted, simplifying the entire mechanical structure.

•

Compact structure and optimized mass: While providing super - strong rigidity and load - bearing capacity, it maintains the same mass as the basic MGP series.

This achieves a balance between performance and light weight, without adding excessive weight due to performance improvement.

•

Good compatibility: The FDS MGPW series strives to maintain a high degree of compatibility with SMC original products (such as the SMC MGPW series) in terms of installation dimensions, interfaces, and functions.
It is convenient for you to directly replace the products without modifying the existing design.
