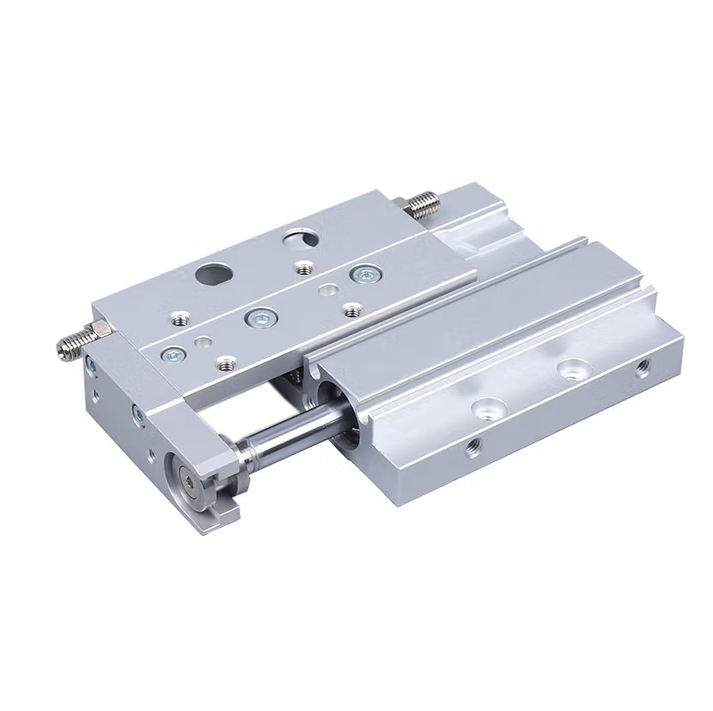

Table Cylinders, MXF Series, Alternative to SMC Pneumatics

The core advantages of the FDS MXF series thin pneumatic slide table are reflected in the following aspects:

•

Ultra-thin design and space saving: The product adopts a parallel design of the guide rod and the cylinder, achieving an ultra-thin overall dimension. The slide table and the cylinder are integrated in one plane, significantly reducing the overall height. It is particularly suitable for use in automated equipment with limited space layout.

•

High rigidity, high precision, and smooth motion: The cross roller guide rail is adopted, enabling smooth motion without shaking or looseness, ensuring the accuracy and stability of the motion, and having excellent linearity and non-rotation accuracy.

•

Flexible installation and multi-directional piping: Two piping methods, axial and radial, are provided, increasing the flexibility and convenience of installation. There are positioning pin holes, with good installation repeatability. It can be fixed from the side and the end, making the installation convenient.

•

Built-in detection and stroke adjustment: The standard type has a built-in magnetic ring, and a magnetic switch can be installed to facilitate position detection and control. The standard type is equipped with a stroke adjustment device (for example, 5mm at the forward end and the backward end respectively), which is convenient for precise control of the moving range.

•

Good compatibility: The FDS MXF series strives to maintain a high degree of compatibility with the original SMC products (such as the SMC MXF series) in terms of installation dimensions, interfaces, and functions, making it convenient for you to directly replace them without modifying the existing design.
