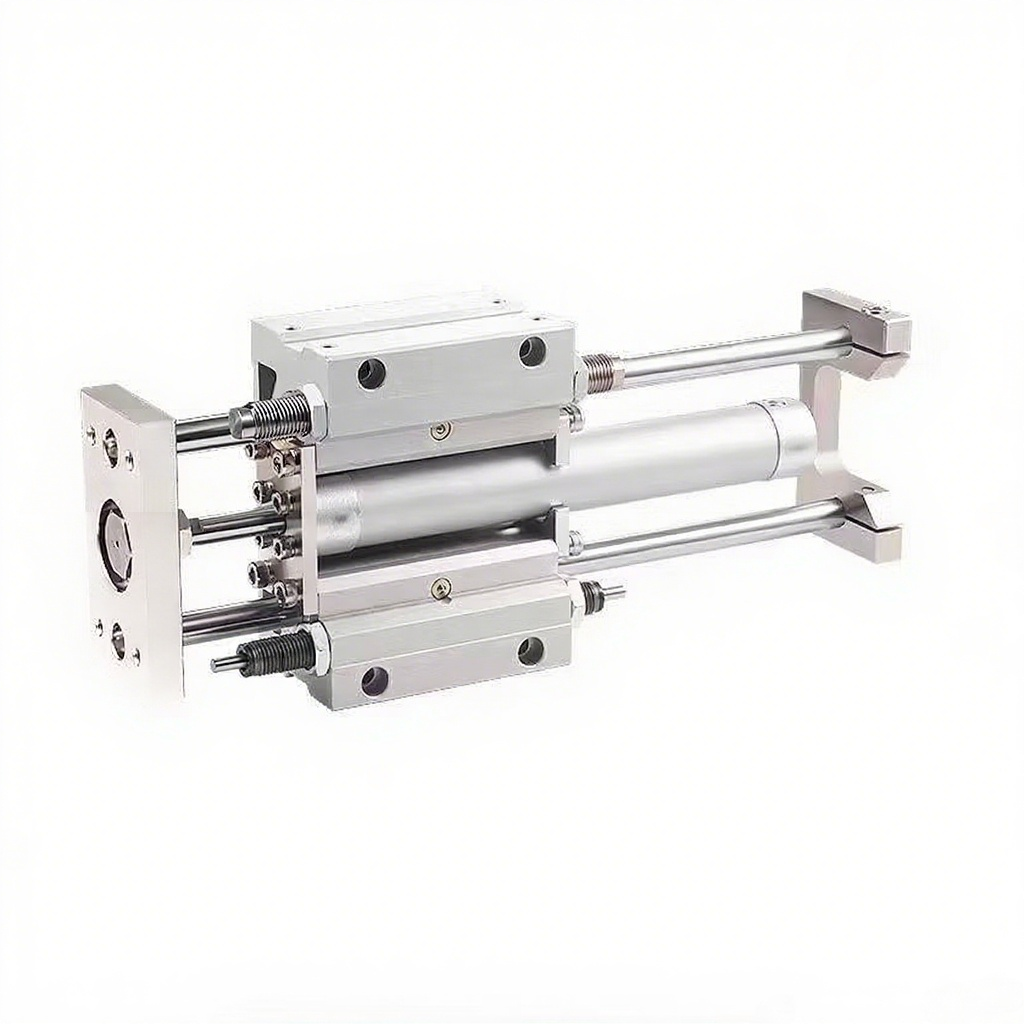

Fidelity / FDS Guided Cylinder MGG, A Cost - effective Alternative to SMC Pneumatic Cylinders

• Core advantages

The core advantages of the FDS MGG series guided cylinders are reflected in the following aspects:

•

High rigidity & excellent anti - moment ability: The product adopts a compact integrated unit design of the basic cylinder and the guide rod, enabling it to withstand relatively large lateral loads and moments.

This means that in many working conditions, the load can be directly installed on the cylinder without additional guiding mechanisms or accessories, which not only simplifies the structure but also improves the overall rigidity.

•

High precision and non - rotation characteristics: Thanks to the stable guide rod integrated design, a high rod non - rotation accuracy is achieved (referring to the SMC MGG series, the non - rotation accuracy can reach ±0.06°), ensuring the linearity of motion and excellent repeat positioning accuracy, which is very suitable for applications requiring precise guidance.

•

Compact structure and flexible installation: The product is a compact integrated unit of the basic cylinder and the guide rod.

It is easy to install. It can be fixed with screws from each side of the cylinder body or fixed with a flange, providing a variety of installation methods and increasing the flexibility of the design.

•

Good compatibility: The FDS MGG series strives to maintain a high degree of compatibility with the original SMC products (such as the SMC MGG series) in terms of installation dimensions, interfaces, and functions, making it convenient for you to directly replace them without modifying the existing design.
