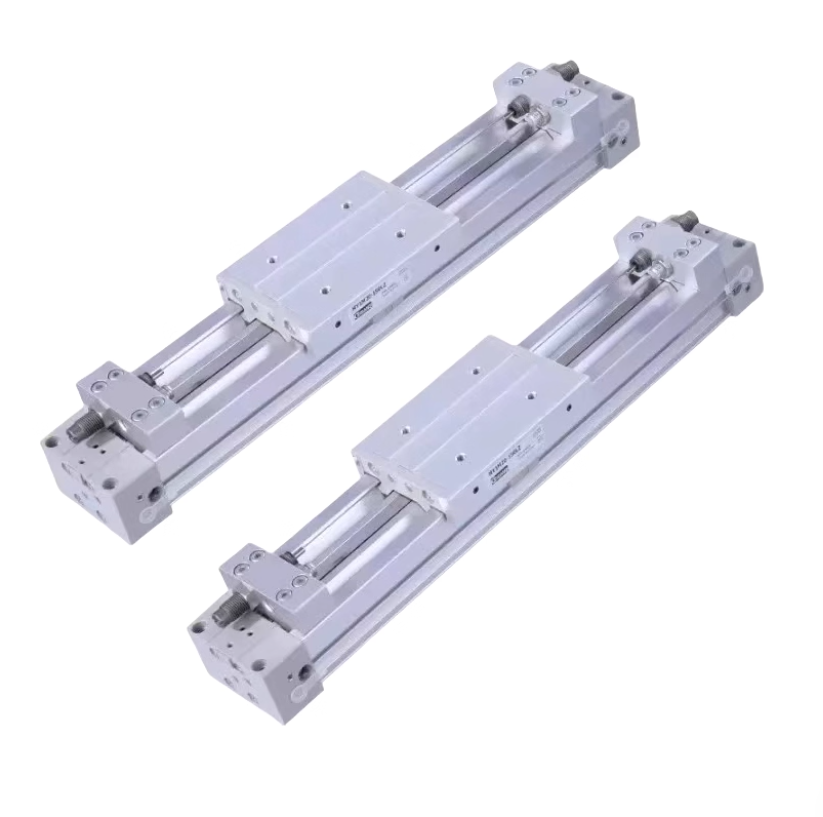

Rodless Cylinders, MY1 Series, Alternative to SMC Pneumatics

Core advantages

The core advantages of the FDS MY1 series mechanically coupled rodless cylinders are reflected in the following aspects:

•

High load capacity and stable transmission: The mechanical coupling method (non - magnetic coupling) is adopted, enabling it to withstand large loads and anti - moment capabilities. The transmission force is direct, stable, and highly reliable, making it suitable for heavy - load applications.

•

Long stroke and significant space savings: Since there is no piston rod, while achieving a long stroke (the stroke of the MY1 series can be up to 5m), its actual installation space along the stroke direction is only about 1.2 times that of traditional cylinders with piston rods (about 2.2 times for traditional cylinders), which can greatly save the installation space of equipment.

•

Diverse guide rail forms and free selection: The product offers 4 standardized guide rail forms (basic type, sliding guide rail type, cam follower guide rail type, high - precision guide rail type). Users can select the most suitable model within a wide range according to the load mass and necessary accuracy, with high flexibility.

•

Good output characteristics: Since there is no piston rod, the pressure - receiving areas on both sides of the piston are equal, so it has the same thrust and pulling force, which is beneficial for improving the accuracy of intermediate positioning.

•

Good compatibility: The FDS MY1 series strives to maintain a high degree of compatibility with SMC original products (such as SMC MY1B, MY1M, MY1C, MY1H series) in terms of installation dimensions, interfaces, and functions, making it convenient for you to directly replace them without modifying the existing design.
