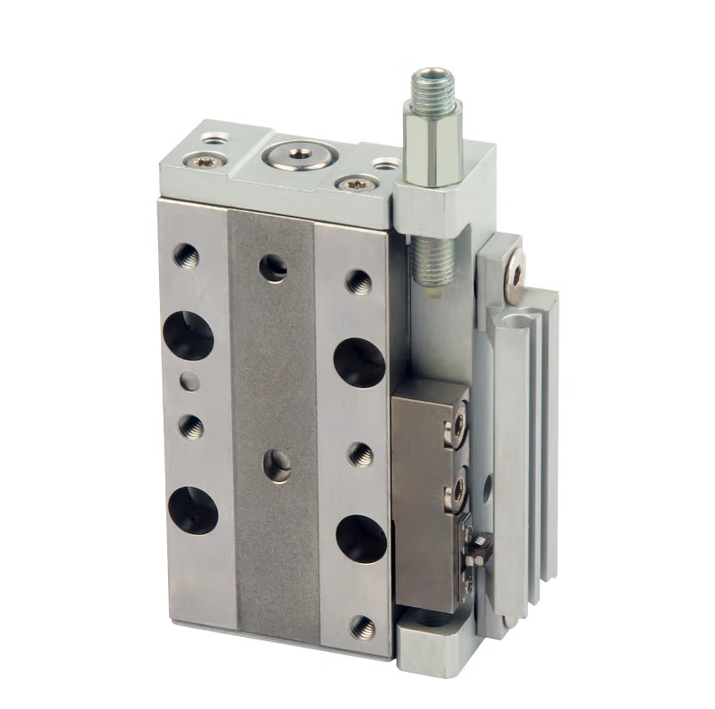

Fidelity/fds Pneumatic Slide MXJ, a cost - effective alternative to SMC Pneumatic

Core advantages

The core advantages of the FDS MXJ series pneumatic slide tables are reflected in the following aspects:

•

Ultra-compact design and extreme space-saving: The product adopts an integrated design of the front mounting part and the slide table, achieving extremely compact external dimensions (for example, the height of the MXJ4 model is only 10mm, the width is 20mm, and the length is 43mm), which can greatly save the installation space of the equipment. It is especially suitable for use in precision automation equipment with extremely limited space layout.

•

High precision and high rigidity: Thanks to the integrated structure and precise guiding mechanism, extremely high movement parallelism (0.005mm) and installation parallelism (0.03mm) are achieved, ensuring the linearity, stability of the movement and excellent repeat positioning accuracy, and also having high rigidity.

•

Flexible installation and signal detection: High precision and high rigidity of the front and top mounting surfaces are achieved, facilitating integration. The magnetic switch and regulator can be installed on the same surface, supporting short-pitch installation, which provides convenience for the position detection and control system.

•

Good compatibility: The FDS MXJ series strives to maintain a high degree of compatibility with the original SMC products (such as the SMC MXJ series) in terms of installation dimensions, interfaces and functions, making it convenient for you to directly replace them without modifying the existing design.
