5-Port Solenoid Valve SY3000/5000/7000/9000 Series - Replacement for SMC Pneumatics

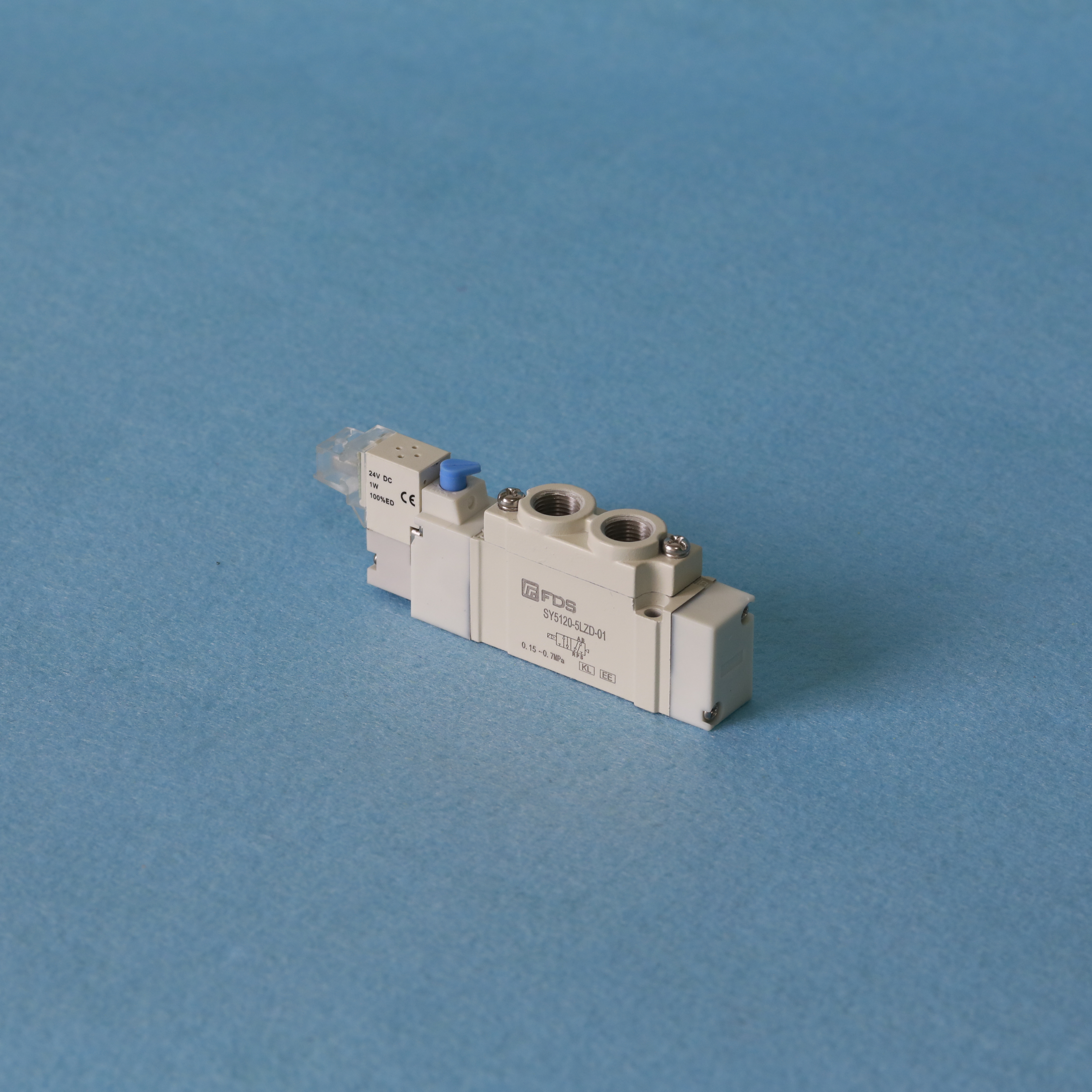

Core Advantages (FDS SY5120-5LZD-01 as a Replacement for SMC)

FDS SY5120-5LZD-01, as a replacement solution for the same model of SMC, aims to inherit the following core advantages:

● Pilot Structure and High Reliability: It adopts the pilot (pressure-guided operation) principle, where the main spool is driven to

change direction by the pilot pressure. It has low power consumption and strong opening and closing capabilities. It can

be reliably started even under low-pressure or zero-pressure-difference conditions, ensuring stable operation.

● Compact Design and Centralized Control: The single-body structure is compact. Multiple valves can be centrally installed through

the manifold plate and easily assembled into a valve island to achieve centralized control of multi-channel pneumatics.

It saves space and simplifies wiring, and is especially suitable for automated production lines (such as beer filling lines).

● Electrical Characteristics and Safety Protection: It uses a safe voltage of

DC24V and is equipped with an L-shaped socket with a 300mm-long wire for convenient wiring.

The valve is integrated with an indicator light for easy on-site observation of the working status, and it has a built-in

overvoltage protection (surge absorption) circuit to effectively protect the coil and extend its service life.

● Manual Operation and Convenient Maintenance: It provides a manual operation function of pressing down and rotating to

lock with a screwdriver, which is convenient for manual intervention during power outages, debugging, or maintenance conditions to ensure the flexibility and continuity of the system.

● Installation Compatibility and Interchangeability: It strives to

be fully compatible with the original SMC products in terms of installation interfaces (such as the pipe connection

diameter Rc1/8), external dimensions, and electrical interfaces. It supports direct piping, making it convenient for users to directly replace without modifying the

existing pneumatic and electrical circuit designs.
