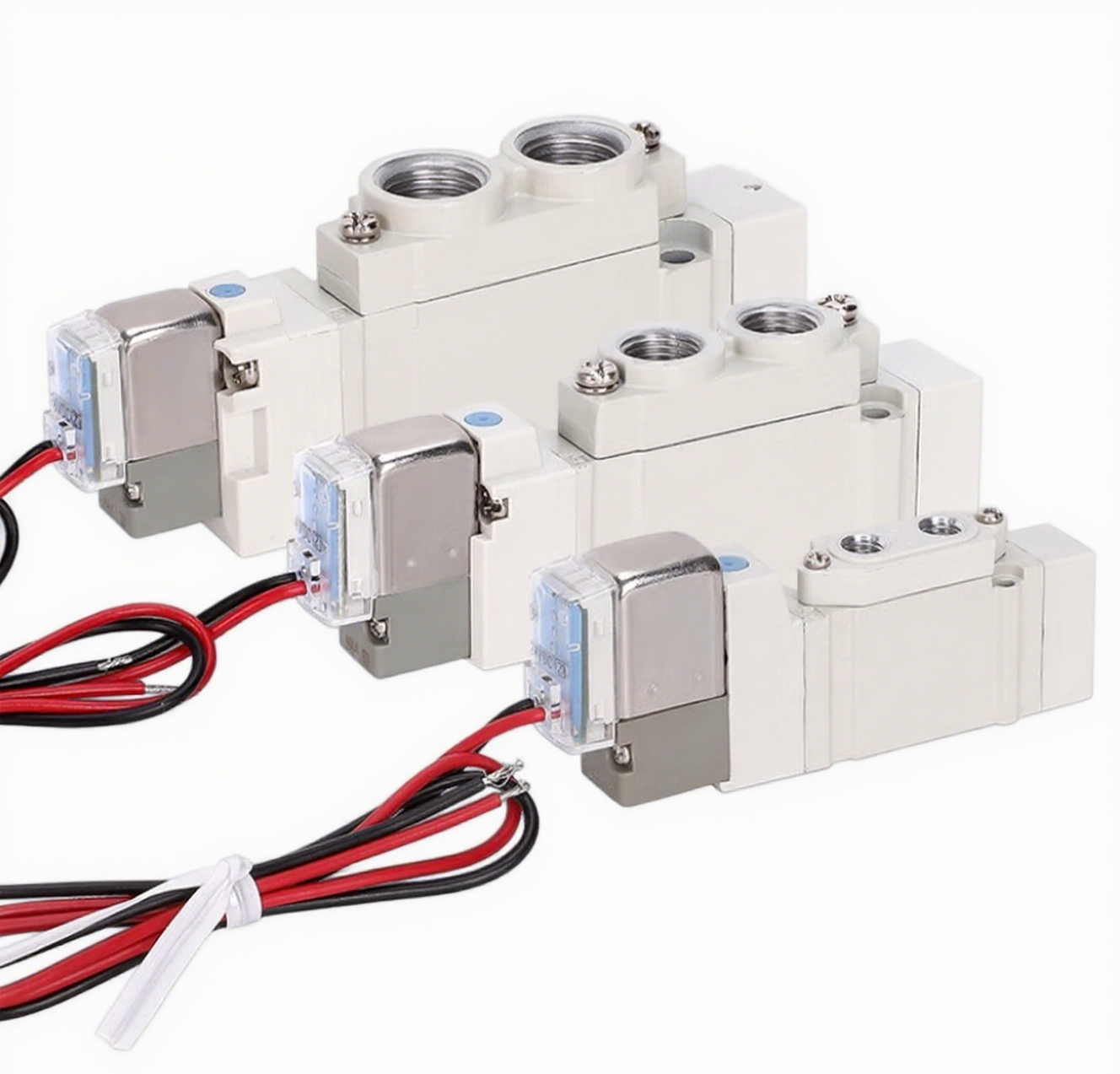

FDS SY Series Five - Way Solenoid Valve - Pilot - Operated, Low Power Consumption, Substitute for SM

Core advantages

The core advantages of the FDS SY series five - way solenoid valves are reflected in the following aspects

:

•

Ultra - low power consumption and high - efficiency energy saving: The product adopts an advanced pilot - type design and a power - saving circuit. The power consumption can be as low as 0.1W (when equipped with a power - saving circuit), and the standard power consumption is only 0.35W - 0.4W, which can significantly reduce the overall energy consumption and operating costs of the control system

.

•

Flexible installation and integration: It uses a plug - in design, which can be connected to a plug - in base plate (metal base plate IP40 or plug - in connection base plate IP67), and supports a variety of manifold options (such as aluminum valve bodies, DIN rails, combined manifolds). Models include SS5Y3, SS5Y5, SS5Y7, SS5Y9, which facilitates the construction and expansion of valve islands

. 3 - way valves and 5 - way valves can be mixed and installed on the same valve island, improving the flexibility of system configuration

.

•

High reliability and long service life: It uses an elastic sealing method, with a service life of up to 70 million cycles (some data also mentions that the service life of clearance sealing can reach 200 million cycles), ensuring the stability and reliability of long - term operation and reducing the frequency of maintenance and replacement

.

•

Large flow rate and compact design: It achieves a large flow rate while reducing the valve body size, which is more energy - efficient and space - saving

. For example, the Cv value of the SY9000 series can reach 2.5

.

•

Abundant configuration options: It offers a variety of functions (such as 2 - position single - solenoid, 2 - position double - solenoid, 3 - position center - closed), rated voltages (such as DC24V, AC100V, etc.), wire lead - out methods (such as DIN - type socket, direct wire - out), and manual operation methods (non - locking push - type, push - and - rotate locking type) to meet different application requirements
