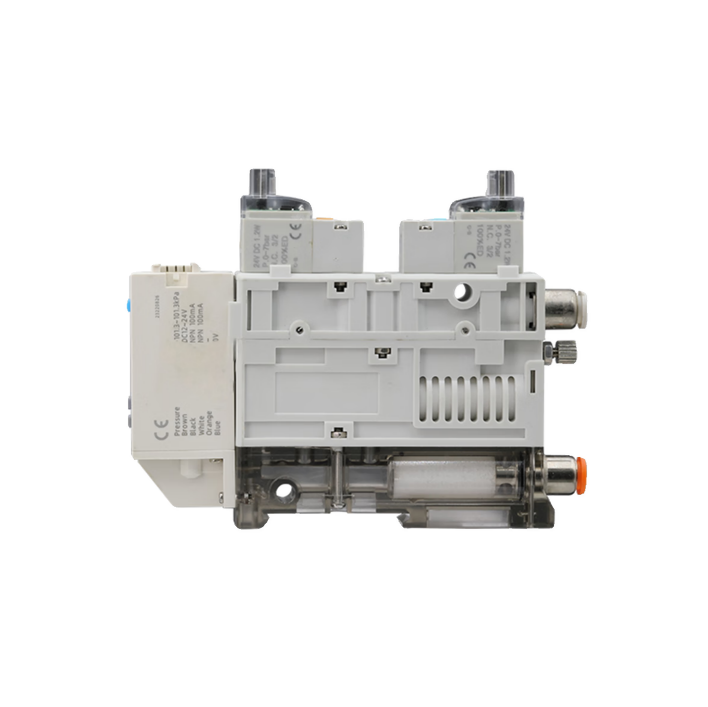

FDS ZK series Vacuum Generator, Substitute for SMC Pneumatics

Core advantages

The core advantages of the FDS ZK07 series integrated vacuum generators are reflected in the following aspects:

•

Highly integrated and compact design: The product integrates three major functions, namely vacuum generation, vacuum break (venting), and vacuum pressure detection (through an optional pressure switch or sensor), into an extremely compact unit.

This design significantly saves installation space, simplifies the connection of pneumatic and electrical circuits, reduces the number of components and assembly time, and is very suitable for automated equipment with limited space.

•

High efficiency, energy saving, and fast response: Thanks to the optimized flow - channel design and efficient ejector technology, it can generate the required vacuum level with a relatively low consumption of compressed air.

Some models are equipped with an energy - saving function. After reaching the set vacuum level, they can automatically cut off the supply of air, significantly reducing energy consumption.

It has a short response time, can quickly build up and release vacuum, and meets the requirements of high - speed production cycles.

•

Excellent materials and structure: The valve body is made of industrial aluminum alloy. Compared with some products made of engineering plastics, it has higher structural strength and durability.

At the same time, it also makes it possible to design more flexible and diverse installation interfaces at the bottom of the valve body, facilitating the position arrangement of engineering designers.

•

Flexible configuration and intelligent control: You can optionally configure an integrated vacuum pressure switch or sensor (such as PNP/NPN output) to monitor the vacuum level in real - time and output signals to the PLC, enabling accurate judgment of the suction state and automatic control. It offers various exhaust forms (such as composite exhaust) and a wide range of electrical interface options (such as plug - in or wired with a plug for centralized wiring) to meet different integration requirements.

•

Good compatibility: The FDS ZK07 series strives to maintain a high degree of compatibility with the original SMC products (such as the SMC ZK series) in terms of installation dimensions, interfaces, and functions, making it convenient for you to directly replace them without modifying the existing design.
