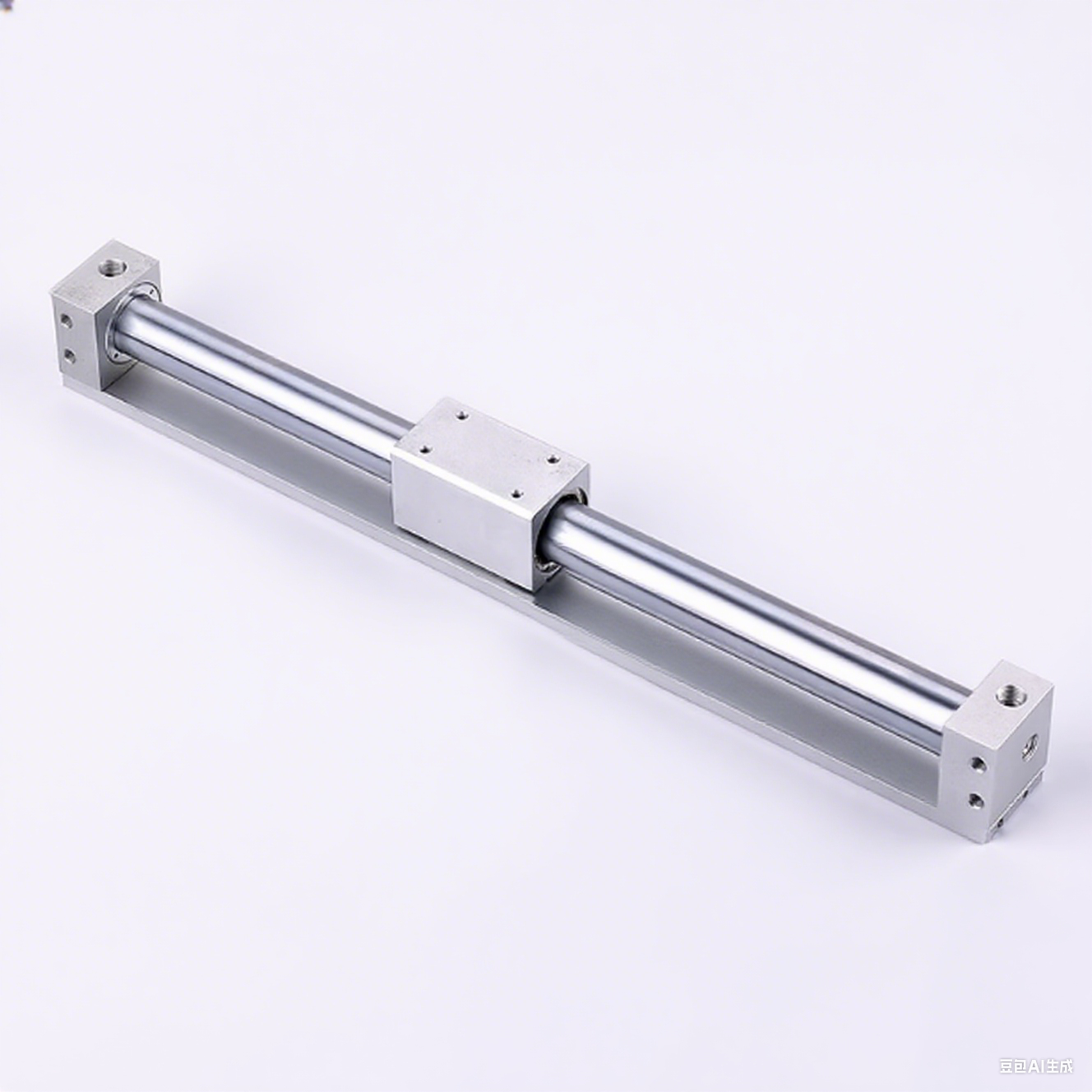

Rodless Cylinders, CY3 Series, Alternative to SMC Pneumatics

Core advantages

The core advantages of the FDS CY3 series magnetic coupling rodless cylinders are reflected in the following aspects:

•

Significant space savings and flexible stroke design: Since the traditional piston rod is eliminated and the external slider is directly driven by magnetic coupling force inside the cylinder, its total length is shorter than that of traditional cylinders under the same stroke. The structure is very compact, which can greatly save the installation space of the equipment. Its stroke can be customized according to requirements, offering great flexibility.

•

High load and high-precision movement: The product design focuses on the load-bearing capacity. For some models (such as referring to SMC CY3R63), the holding force can reach 2256N.

Equipped with high-precision guide rails (such as referring to the SMC CY1H series), it can effectively prevent the slider from swinging, ensuring the linearity, stability and high repeat positioning accuracy of the movement, and can meet the application scenarios with high requirements for movement accuracy.

•

Good compatibility and performance improvement: The FDS CY3 series strives to maintain a high degree of compatibility with SMC original products (such as the SMC CY3 series) in terms of installation dimensions and interfaces, making it convenient for you to directly replace them without modifying the existing design. Its bearing performance is optimized, the sliding resistance is reduced, and the operation is smoother.

•

Multiple installation methods and standardized interfaces: It provides various forms such as the basic type (CY3B) and the direct installation type (CY3R) to meet different installation requirements.

The NPT threads and G threads are standardized, facilitating the connection of the air circuit.
