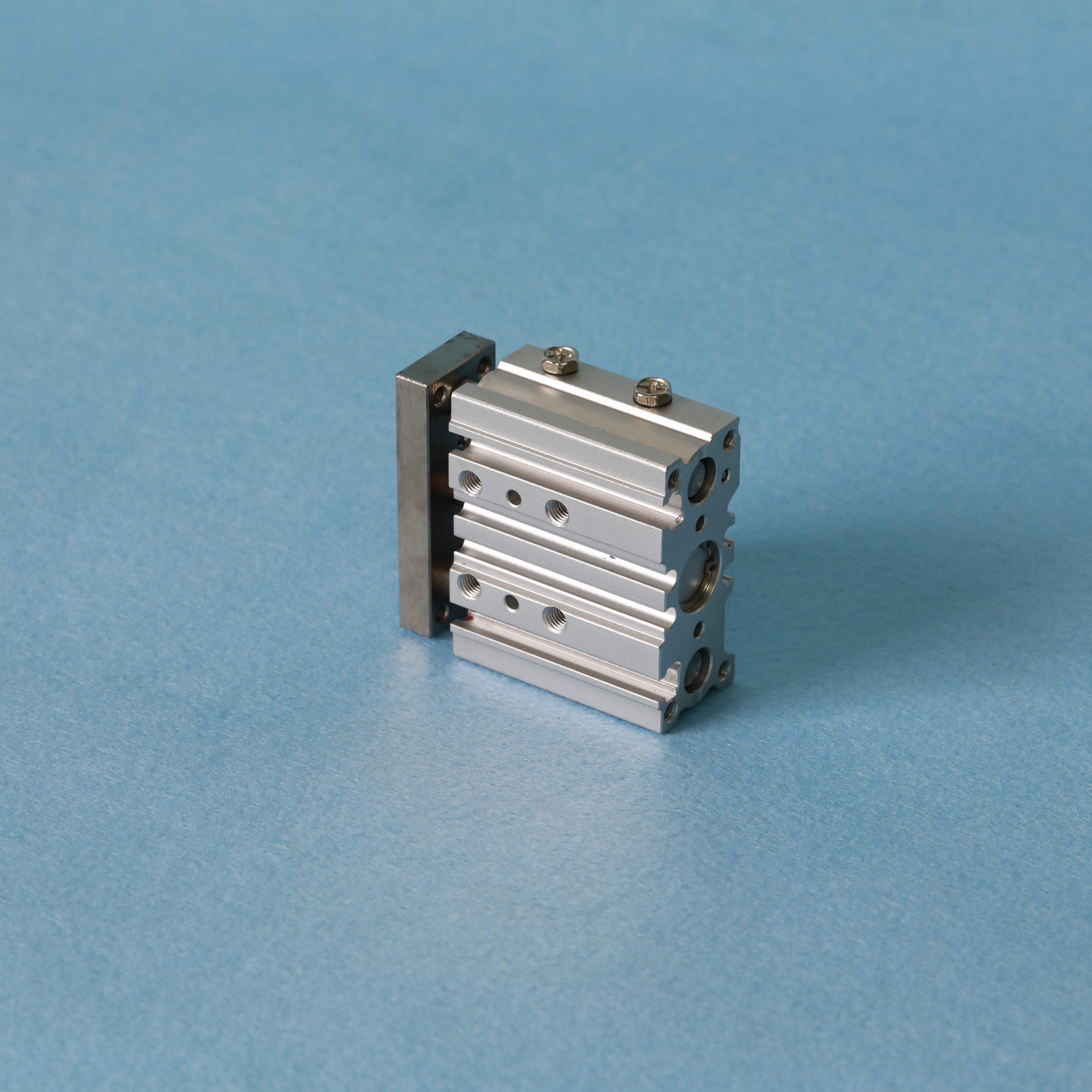

Fudashi/fds Double Cylinder MGPM, A Cost - effective Alternative to SMC Pneumatic Cylinders

Core advantages

The core advantages of the FDS JMGP series double - acting cylinders are reflected in the following aspects:

•

High rigidity & excellent anti - moment ability: The product adopts an integrated design of two cylinders in parallel, which significantly enhances its ability to resist lateral loads and moments. This means that in many working conditions, the load can be directly installed on the cylinder without additional guiding mechanisms or accessories, which not only simplifies the structure but also improves the overall rigidity. It is very suitable for applications that require high - precision guidance.

•

Compact structure and space - saving: Compared with the combination of two independent cylinders, the double - acting cylinder design is more compact and can effectively save the installation space of the equipment. It is especially suitable for use in automated equipment with limited space layout.

•

High - precision guidance and smooth movement: The design of synchronous movement of the two cylinders helps to improve the smoothness of movement and guidance accuracy, reducing the possible jamming or uneven loading problems of a single cylinder and ensuring the linearity of movement and repeat positioning accuracy.

•

Convenient installation and good compatibility: The FDS JMGP series strives to maintain a high degree of compatibility with the original SMC products (such as the SMC JMGP series) in terms of installation dimensions, interfaces, and functions. This makes it convenient for you to directly replace them when designing new equipment or maintaining existing equipment without modifying the existing design.
