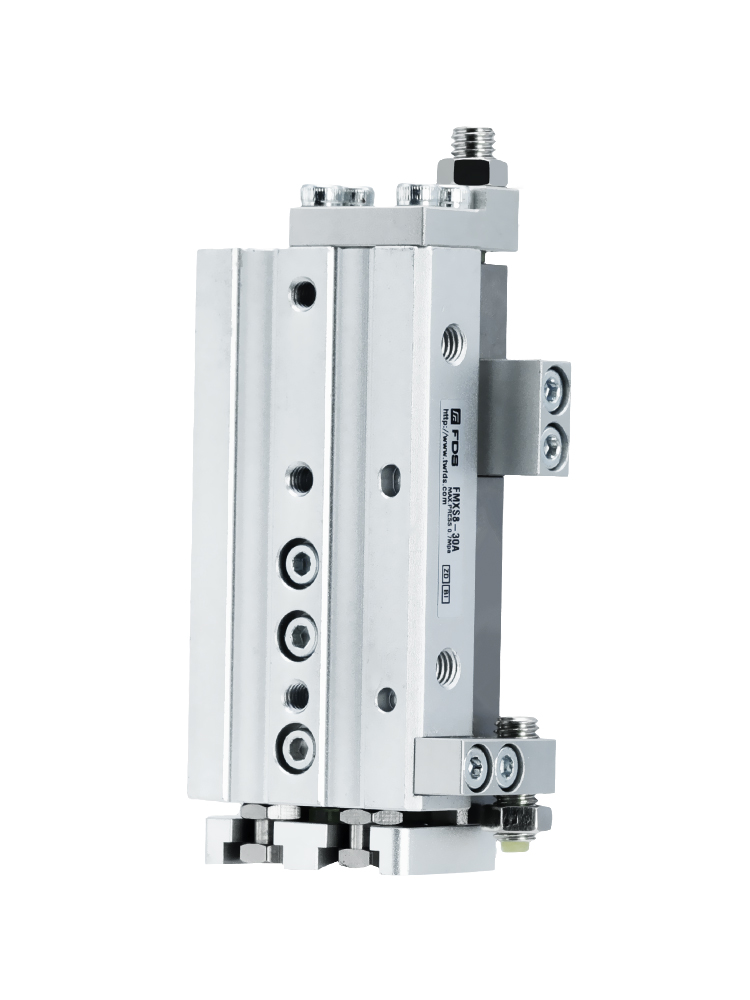

FDS MXQ12-30 Pneumatic Slide Cylinder | High-Precision SMC Alternative Solution
1. Product Overview
The FDS MXQ12-30 pneumatic slide cylinder is a high-performance, high-precision linear drive actuator. It is specifically designed to replace the Japanese SMC MXQ12-30A model, offering the same mounting dimensions and performance specifications while providing more competitive pricing and shorter delivery cycles. Its core design concept is the "integration of guide rail and slide table," achieving high rigidity and high-precision motion in a compact structure.
2. Key Features
High Rigidity and Precision: Adopts cross-roller guide mechanism with low friction, smooth motion, and no looseness. High parallelism and perpendicularity accuracy, suitable for precision assembly and handling.
Compact Integrated Design: Cylinder table and guide rail are tightly integrated, saving installation space with robust overall structure.
Double-Acting Drive: Supports bidirectional pneumatic drive with simple control and fast response.
Excellent Compatibility: Mounting hole positions and port thread specifications (M5) are fully compatible with original SMC products, allowing direct replacement without modifying existing equipment design.
Built-in Magnetic Ring: Facilitates installation of magnetic switches (optional) for precise detection and control of stroke position.
3. Technical Specifications
Parameter | Value/Description |
Bore Size | 12 mm |
Stroke | 30 mm |
Port Thread | M5 x 0.8 |
Operating Type | Double-Acting |
Operating Pressure | 0.15 ~ 0.7 MPa |
Proof Pressure | 1.05 MPa |
Ambient Temperature | -10 ℃ ~ 60 ℃ |
Piston Speed | 50 ~ 500 mm/s |
Lubrication | Non-lubricated |
Theoretical Thrust (OUT @0.5MPa) | 113 N |
4. Why Choose FDS as SMC Alternative?
Equivalent Performance: FDS MXQ12-30 matches the original SMC product in key performance indicators (rigidity, precision, thrust, speed), ensuring no compromise in equipment performance.
Cost-Effective: Offers more competitive pricing while maintaining the same quality and performance, helping enterprises reduce procurement and maintenance costs.
Fast Delivery: Sufficient inventory and efficient supply chain management ensure shorter delivery cycles, reducing equipment downtime.
Local Service & Support: Provides timely technical support, after-sales service, and warranty with more convenient communication.
5. Application Fields
Automation Equipment: Machine tool loading/unloading, assembly manipulators, positioning and clamping.
Electronics Manufacturing: Circuit board processing, component placement, precision testing equipment.
Pharmaceutical & Bioengineering: Packaging machinery, laboratory automation.
Environmental Protection & Energy: Battery production, filtration equipment, clean energy equipment.
______
Note: This introduction page is designed based on publicly available SMC product information for comparison, aiming to illustrate the compatibility and substitutability of FDS products. Please refer to the latest official FDS specification for actual product parameters.
